High Frequency Welded Tube Mill
XFX Tube Mill Machinery manufactures high frequency welded tube mill lines for carbon steel pipe production. Our tube mill solutions are designed for producing round pipes, square tubes, rectangular tubes, structural tubes, and other welded steel tube products.
High Frequency Welding Tube Mill for Stable Pipe Production
A high frequency welded tube mill forms steel strip into tube shape and welds the strip edges using a high frequency welding system. The line is commonly used for carbon steel welded pipe production with stable forming, welding, sizing, and cutting performance.
XFX combines the functions of an ERW tube mill machine and steel pipe making machine into a practical production solution. As a tube mill manufacturer in China, we configure each welded tube mill around the customer’s product range and operating conditions.
Suitable Materials
The machine can be configured for different steel strip materials depending on the customer’s production requirements.
- HR steel strip
- CR steel strip
- GI steel strip
- PPGI or coated steel strip, depending on product requirements
- Other carbon steel strip materials after technical confirmation
Tube Products You Can Produce
- Round welded steel pipes
- Square tubes
- Rectangular tubes
- Furniture tubes
- Construction tubes
- Structural tubes
- General carbon steel welded tubes
Typical High Frequency Welded Tube Mill Line Configuration
1. Uncoiler
Holds and feeds the steel coil into the line.
2. Shear and Welder
Connects the end of one strip coil to the start of the next.
3. Accumulator
Stores strip to support continuous operation during coil changes.
4. Forming Mill
Gradually forms flat steel strip into an open tube profile.

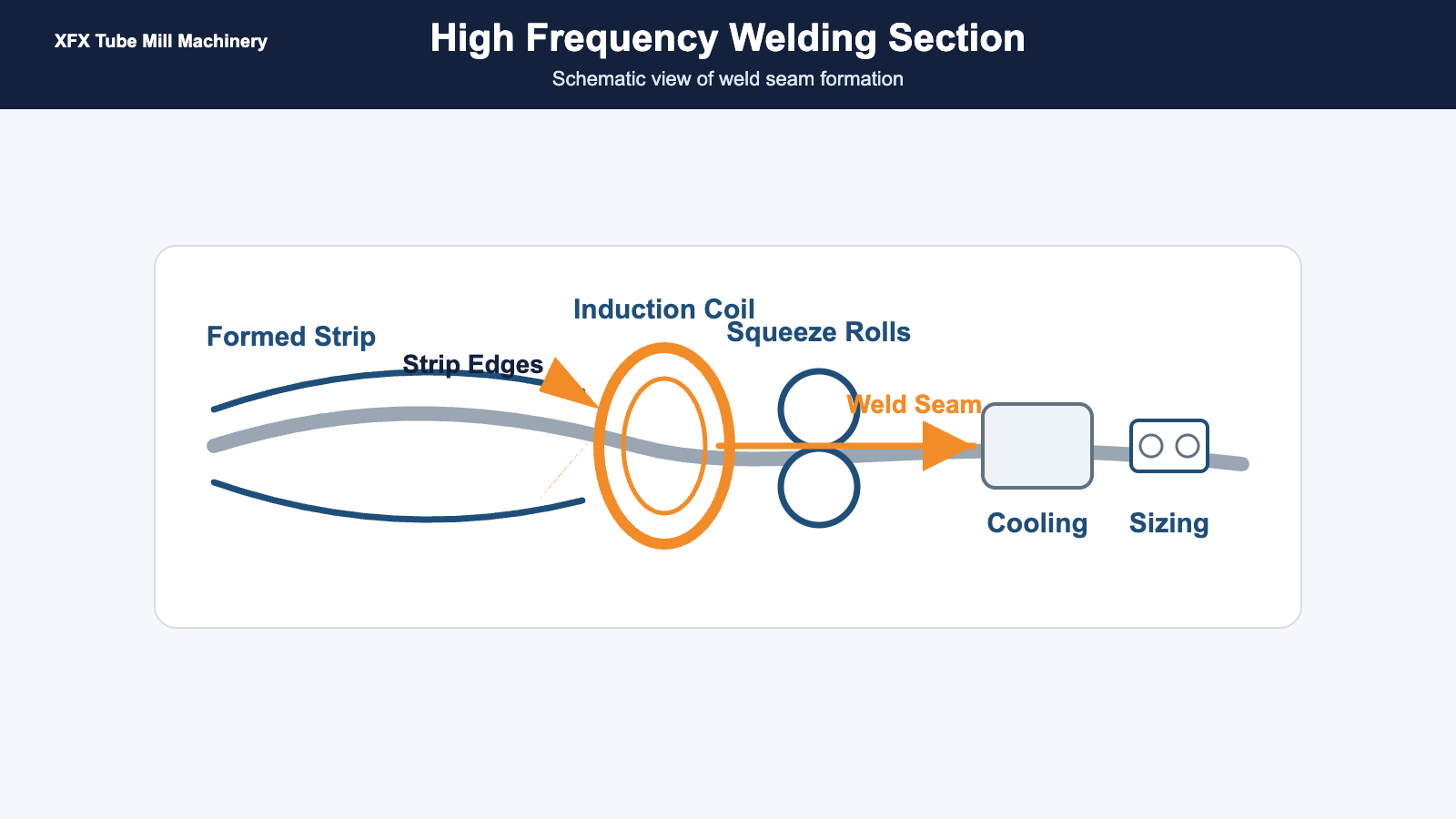

5. High Frequency Welding System
Heats and welds the prepared strip edges into a continuous tube.
6. Weld Bead Treatment
Removes or controls the weld bead when required by the finished product.
7. Sizing Mill
Controls final dimensions and forms square or rectangular profiles when needed.
8. Flying Saw or Cutting System
Cuts finished tubes continuously to the specified length.
9. Run-out Table
Receives and transfers the cut tubes safely.
10. Optional Auxiliary Equipment
Adds handling, packing, finishing, or other equipment based on the project.
Custom Configuration Based on Tube Size and Wall Thickness
High frequency welded tube mill configuration depends on tube size, wall thickness, material, production speed, welding power, cutting method, and workshop layout. To recommend a suitable solution, we need accurate tube size and wall thickness information.
- Tube size list
- Wall thickness for each size
- Tube shape: round, square, or rectangular
- Material type
- Production capacity target
- Voltage and frequency
- Workshop layout if available
Why Choose XFX High Frequency Welded Tube Mill?
Factory Direct Tube Mill Manufacturer
Work directly with XFX for technical discussion, production coordination, quality control, and practical factory pricing.
Practical Machine Configuration
We select forming design, welding power, roll tooling, motors, cutting method, and auxiliary equipment around your actual products.
Durable Production Line Structure
Strong construction and controlled manufacturing support stable forming, welding, sizing, and long-term operation.
Installation, Training, and Remote Support
We can provide installation guidance, commissioning support, operator training, remote troubleshooting, and spare parts service.
Related Tube Mill Machinery Products
ERW Tube Mill Machine | Steel Pipe Making Machine | Square Tube Mill Machine | Tube Mill Rolls | Slitting Line
High Frequency Welded Tube Mill FAQ
What is a high frequency welded tube mill?
It is a production line that forms steel strip into tube shape and welds the strip edges using a high frequency welding system to produce welded steel tubes.
What materials can be used?
Common materials include HR, CR, GI, and related carbon steel strip materials. Coated materials such as PPGI may be possible depending on product requirements and technical confirmation.
Can the line produce square and rectangular tubes?
Yes, many high frequency welded tube mill lines can produce round pipes and then form square or rectangular tubes through suitable sizing sections and roll tooling.
What information is needed for quotation?
Please provide tube sizes, wall thickness for each size, material, tube shape, production capacity target, voltage, and destination country.
Do you provide installation and training?
Yes. We can provide installation guidance, commissioning support, operator training, remote support, and spare parts service.
Need a High Frequency Welded Tube Mill Quotation?
Send your tube sizes, wall thickness, material, and production requirements. Our technical team will help you check a suitable high frequency welded tube mill solution.
