Square Tube Mill Machine for Square and Rectangular Steel Tubes
A square tube mill machine produces square and rectangular welded steel tubes through a confirmed forming, welding, cooling, sizing, and cutting route. XFX reviews the complete tube schedule, matching wall thickness, material, corner and dimensional requirements, production target, and factory conditions before recommending the machine and tooling configuration.
Quick Understanding
This page is for buyers whose main output is square or rectangular tube. Final line and tooling details remain project-specific.
| Decision item | What must be confirmed |
|---|---|
| Tube program | Every square and rectangular size with the matching wall thickness and required production mix. |
| Forming route | Round-to-square or another engineered route must be selected from the confirmed product range and quality target. |
| Quality focus | Corner geometry, side flatness, dimensional consistency, straightness, seam position, and surface expectations. |
| Tooling | Roll design and stand arrangement follow the tube shape, size, wall thickness, material, and machine structure. |
| Final configuration | Requires XFX engineering confirmation before equipment, power, speed, tooling, and acceptance details are agreed. |
How Square and Rectangular Tube Is Formed

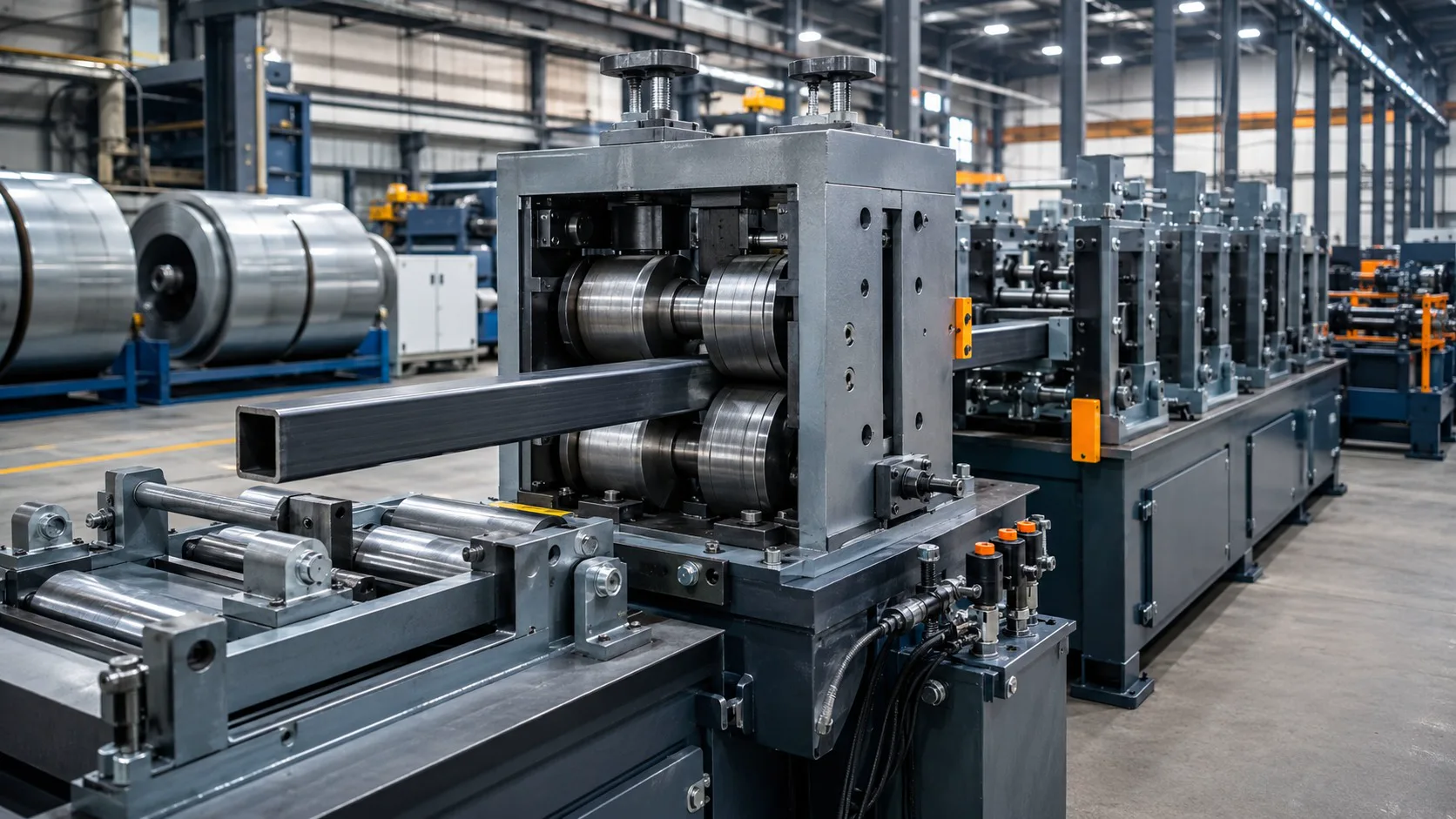

In many welded-tube lines, steel strip is first formed and welded as round tube. Downstream sizing and shaping stands then progressively form the tube into the required square or rectangular section.
The correct forming route depends on the full order mix. A route suitable for one range may not be the best choice for another range with different wall thickness, material behavior, corner requirements, or changeover needs.
Engineering boundary: XFX does not select a square tube mill from the largest outside dimension alone. The complete size-by-thickness list and finished-product criteria must be reviewed together.
Five Factors That Control Square Tube Quality
Stable production comes from the complete line, not one isolated stand.
Forming Progression
Roll passes should distribute deformation gradually while maintaining strip and weld-seam position.
Corner and Side Control
Tooling and sizing arrangement influence corner shape, side flatness, dimensions, and appearance.
Material and Wall Thickness
Steel grade, strip condition, coating, and wall thickness affect forming load and springback behavior.
Mill and Roll Condition
Stand alignment, roll condition, bearings, setup, and maintenance influence repeatability and surface quality.
Welding and Cooling
Seam preparation, welding stability, squeeze pressure, cooling, and downstream sizing must work as one process.
Setup and Inspection
Operators need confirmed setup references and practical checks for dimensions, straightness, seam, and surface condition.
Main Line Configuration
The exact equipment list depends on the confirmed product schedule, coil conditions, handling plan, and required support scope.
| Line section | Function | Square-tube selection note |
|---|---|---|
| Coil entry and strip preparation | Supports, guides, levels, and prepares strip for continued production. | Selected from coil data and production plan. |
| Forming and welding | Forms strip and creates the continuous longitudinal weld seam. | Matched to material, wall thickness, and seam requirements. |

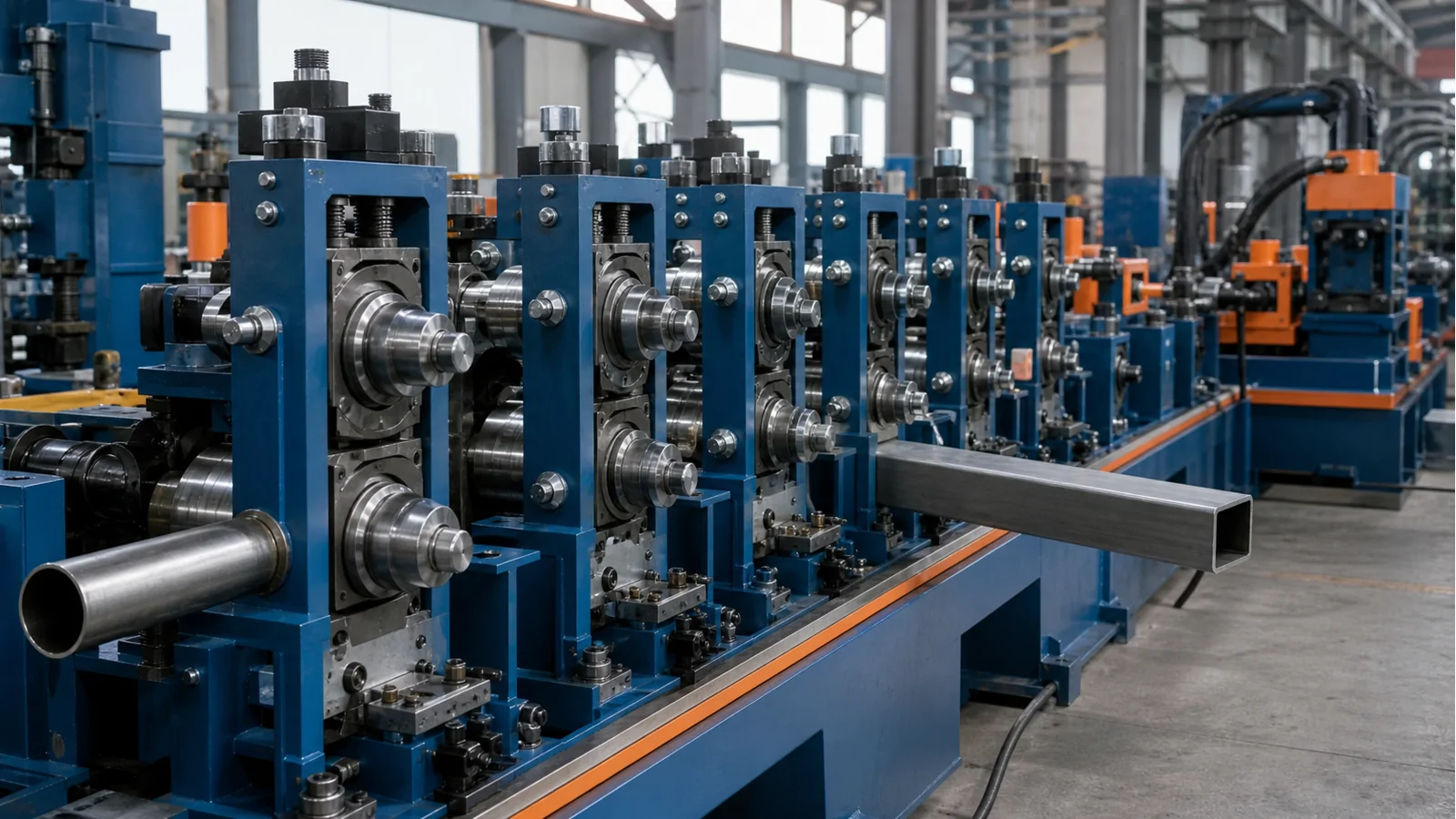

| Cooling and sizing | Controls temperature and progressively establishes final shape and dimensions. | Roll passes follow square and rectangular product requirements. |

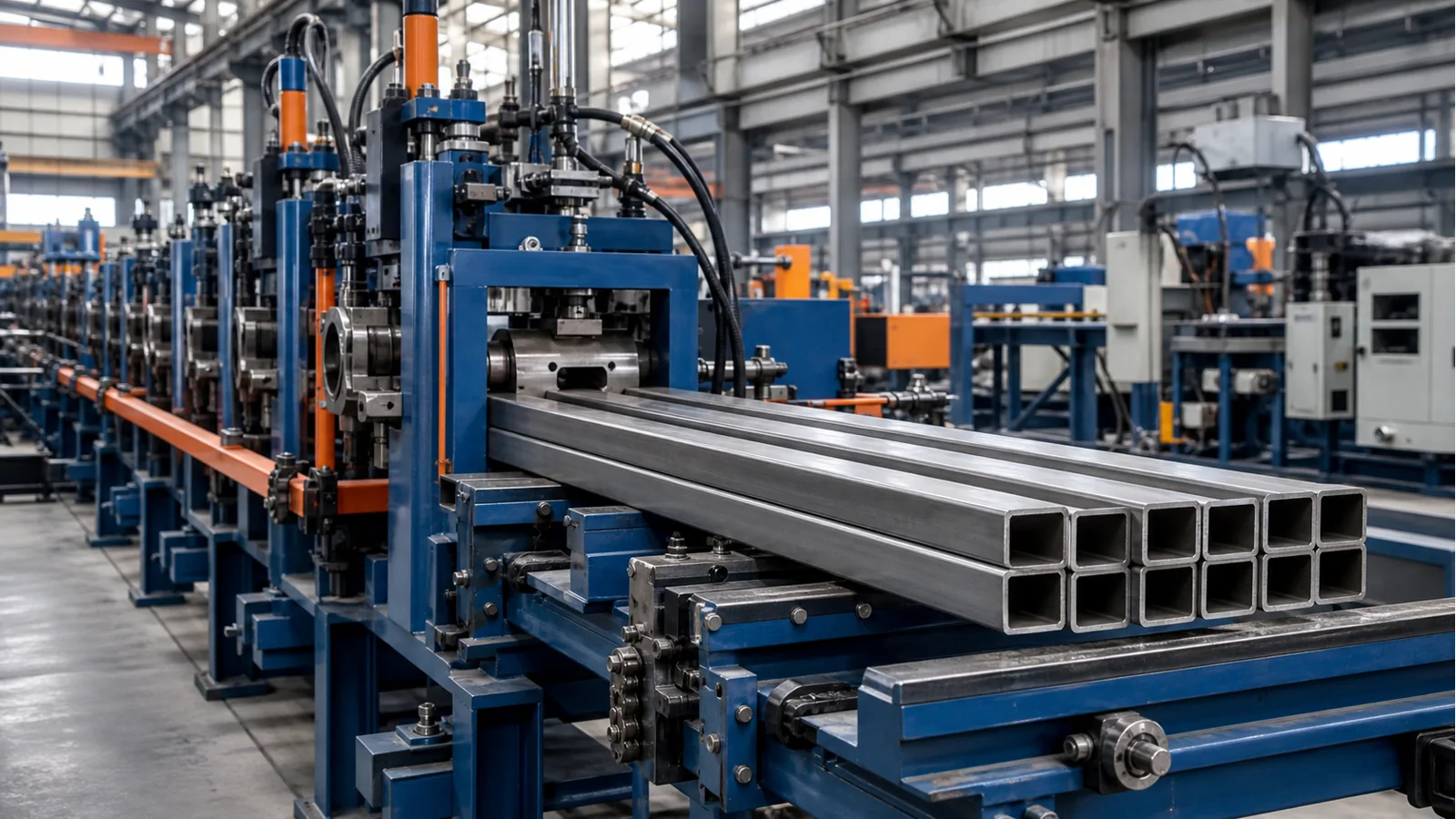

| Cut-off and run-out | Cuts the moving tube and transfers finished lengths. | Method follows section size, wall thickness, length, and end-quality need. |
| Roll tooling | Provides the forming, welding, and sizing geometry for the tube program. | Designed from confirmed tube and machine information. |
When a Square Tube Mill Is the Right Focus
This page is most useful when square and rectangular hollow sections are the main products and the buyer needs focused discussion about shape conversion, corner control, sizing, tooling, and changeovers.
If round pipe is equally important, start with the ERW Tube Mill Machine page and provide the complete mixed product schedule. For a general complete-line buying process, use the Steel Pipe Making Machine page.
Information required for quotation
- Every square and rectangular size
- Wall thickness matched to each size
- Any round-tube requirement on the same line
- Material grade, condition, and coating
- Corner, straightness, surface, and length expectations
- Production target, voltage, destination, and layout
- Installation, training, and spare-parts support needed
Square Tube Mill Machine FAQ
Answers become specific after the tube program and factory conditions are confirmed.
Can one line produce both square and rectangular tubes?
It may be possible when the line, forming route, stands, and roll tooling are designed for the complete confirmed range. Each size and wall thickness must be reviewed.
Can the same line also produce round tube?
Many projects combine round, square, and rectangular requirements, but practical coverage depends on the model, tooling, product mix, material, and quality criteria.
What information controls corner quality?
Tube size, wall thickness, material, forming route, roll design, stand alignment, setup, and required finished corner geometry all matter.
How is the correct machine model selected?
XFX reviews the full size-by-thickness schedule, shapes, material, production target, cut length, factory power, layout, and support requirements.
Can XFX support installation and operator training?
Depending on the agreed project scope and destination, XFX can support installation guidance, operator training, remote technical communication, trial running, and spare-parts coordination.
Related Resources
Continue from square-tube requirements to complete-line selection, tooling, model comparison, and inquiry preparation.
ERW Tube Mill Machine
Review the complete welded-tube process for mixed round, square, and rectangular production.
Review ERW Tube MillsTube Mill Rolls
Prepare the tube and machine information needed for new or replacement square-tube tooling.
Review Roll ToolingFX Model Selection
Compare archived model reference ranges, then confirm the final model through engineering review.
Compare ModelsProjects
See how production requirements, configuration, QC, delivery, and support are organized.
View Project PlanningRequest Your Tube Mill Solution
Send your tube size list, wall thickness for each size, tube shape, material, production target, voltage, destination country, and workshop layout if available. XFX will review the information before discussing the line configuration.
Service scope is confirmed for each project. XFX can support installation guidance, operator training, remote technical communication, trial running under suitable conditions, pre-shipment checks, and spare-parts coordination. On-site support, buyer preparation, test scope, timing, and commercial responsibilities are agreed before order or shipment.
